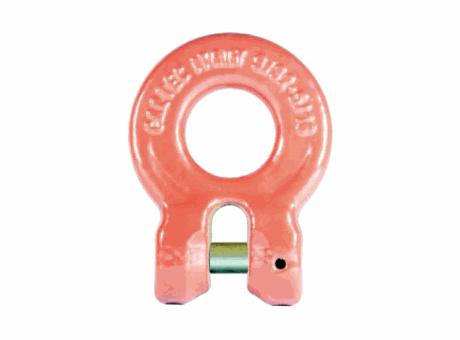

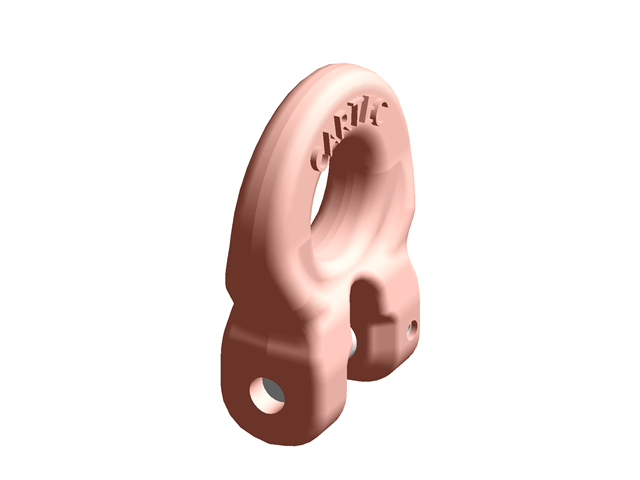

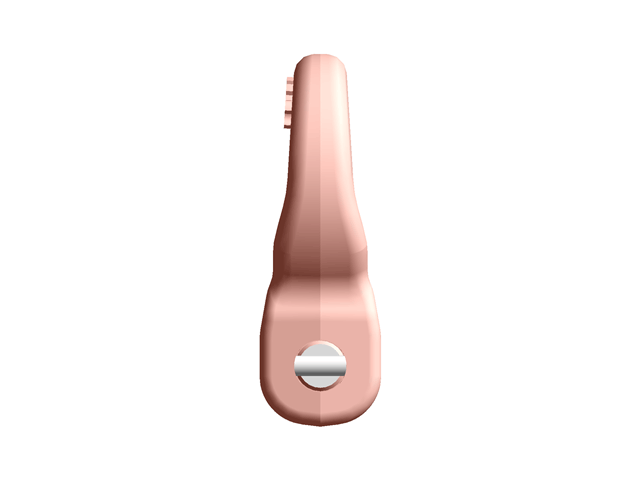

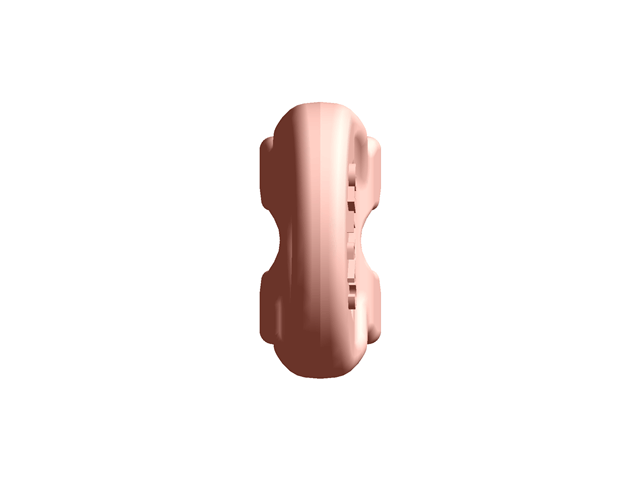

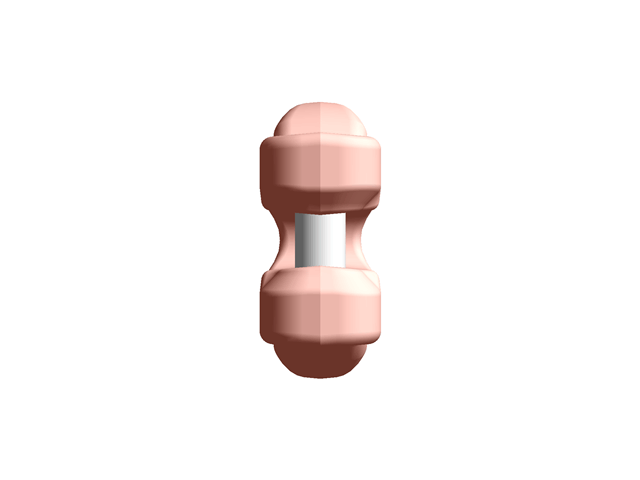

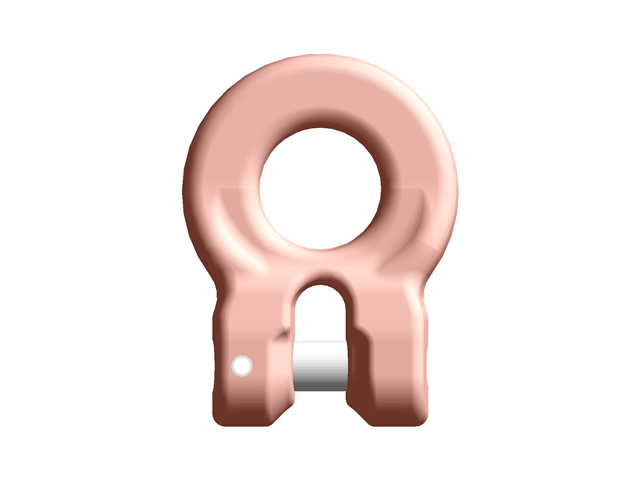

Back to Cartec G10 Clevis Attachments
Made in Italy

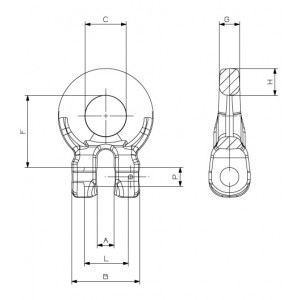

| Item Number | Chain | inch | A (mm) | B (mm) | C (mm) | F (mm) | G (mm) | H (mm) | PxL (mm) | Weight (Kg) | W.L.L. (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CPAX 06 | 6 | 1/4 | 7,5 | 32 | 18 | 32 | 9,8 | 11 | 7,5x21 | 0,15 | 1400 |
| CPAX 07 | 7 | 9/32 | 9,5 | 40 | 24 | 42,5 | 12 | 15 | 9x26 | 0,28 | 1900 |
| CPAX 08 | 8 | 5/16 | 9,5 | 40 | 24 | 42,5 | 12 | 15 | 10x26 | 0,28 | 2500 |
| CPAX 10 | 10 | 3/8 | 12 | 48 | 30 | 51,5 | 15,7 | 18 | 13x31,5 | 0,5 | 4000 |
| CPAX 13 | 13 | 1/2 | 15,5 | 54 | 36 | 63,5 | 19 | 21,5 | 16x42 | 0,9 | 6700 |
| CPAX 16 | 16 | 5/8 | 18 | 70 | 47 | 79,5 | 22,7 | 27,5 | 21x51,5 | 1,8 | 10000 |
