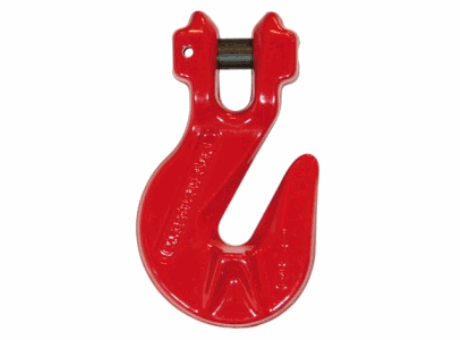

Back to Cartec G8 Clevis Grab Hook
Made in Italy

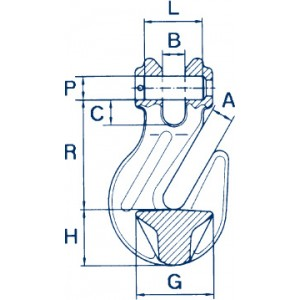

| Item Number | Chain | inch | A (mm) | B (mm) | C (mm) | G (mm) | H (mm) | R (mm) | Weight (Kg) | W.L.L. (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| CF 06 | 6 | 1/4 | 8 | 8 | 8,8 | 22 | 22 | 51,5 | 0,2 | 1120 |
| CF 08 | 7-8 | 9/32-5/16 | 10 | 9 | 10 | 30 | 24 | 50 | 0,27 | 2000 |
| CF 10 | 10 | 3/8 | 13 | 13 | 14 | 44 | 31 | 72 | 0,75 | 3150 |
| CF 13 | 13 | 1/2 | 17 | 17 | 17 | 53 | 38 | 88 | 1,35 | 5300 |
| CF 16 | 16 | 5/8 | 20 | 21 | 20 | 64 | 60 | 111 | 2,8 | 8000 |
| CF 20 | 20 | 3/4 | 24 | 24 | 24 | 85 | 65 | 130 | 4,8 | 12500 |
| CF 22 | 22 | 7/8 | 26 | 26 | 26 | 87 | 68 | 139 | 5,65 | 15000 |
| CF 26 | 26 | 1 | 30,5 | 30 | 35 | 100 | 90 | 190,5 | 13,5 | 21200 |
