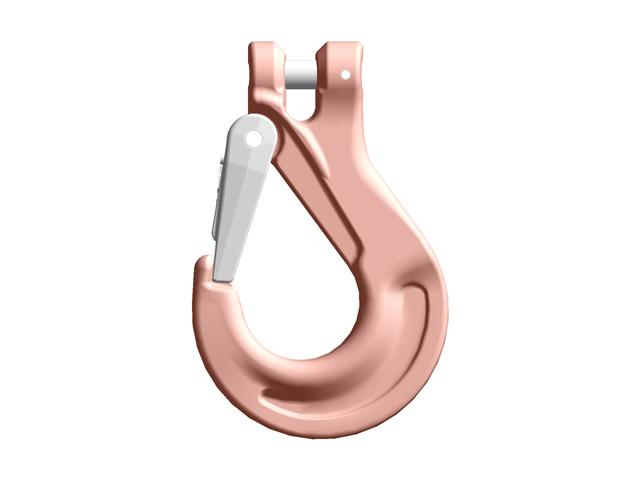

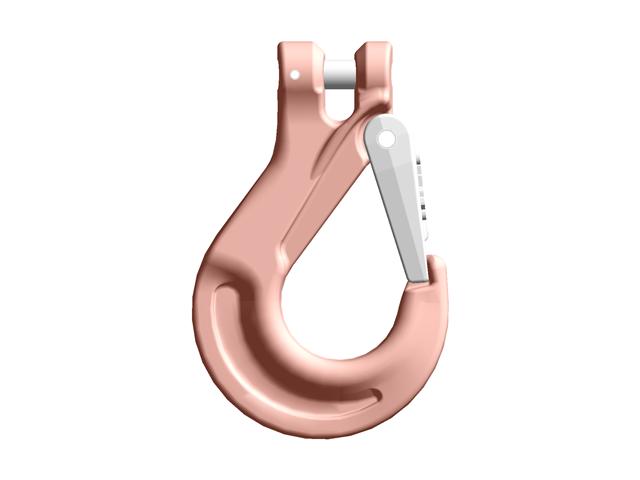

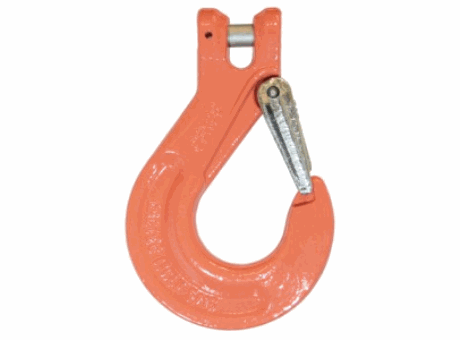

Back to Cartec G10 Clevis Sling Hook With Latch
Made in Italy

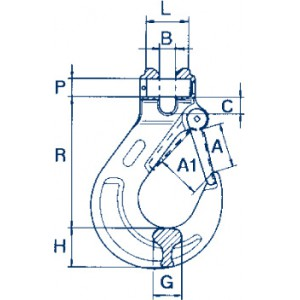

| Item Number | Chain | Inch | A (mm) | B (mm) | C (mm) | G (mm) | H (mm) | R (mm) | Weight (kg) | W.L.L. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| CBX 06SF | 5-6 | 7/32-1/4 | 26 | 7,2 | 8 | 15 | 20 | 69 | 0,25 | 1400 |
| CBX 07SF | 7 | 9/32 | 34 | 9,5 | 10 | 19 | 28 | 95 | 0,55 | 1900 |
| CBX 08SF | 8 | 5/16 | 34 | 9,5 | 10 | 19 | 28 | 95 | 0,5 | 2500 |
| CBX 10SF | 10 | 3/8 | 40 | 12 | 13,5 | 25 | 33 | 110 | 1 | 4000 |
| CBX 13SF | 13 | 1/2 | 51 | 15 | 17 | 30 | 40 | 136 | 1,7 | 6700 |
| CBX 16SF | 16 | 5/8 | 56 | 18 | 22 | 37 | 48 | 155 | 3,2 | 10000 |
| CBX 20SF | 20 | 3/4 | 60 | 23 | 26 | 51 | 52 | 185 | 5 | 16000 |
| CBX 22SF | 22 | 7/8 | 70 | 25 | 29 | 50 | 63 | 210 | 12,3 | 19000 |
