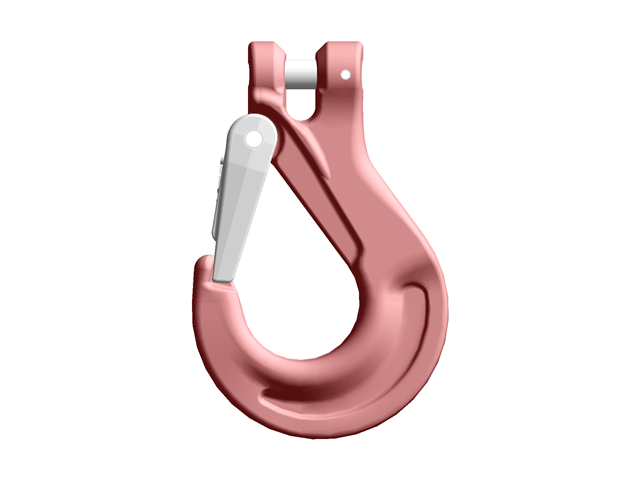

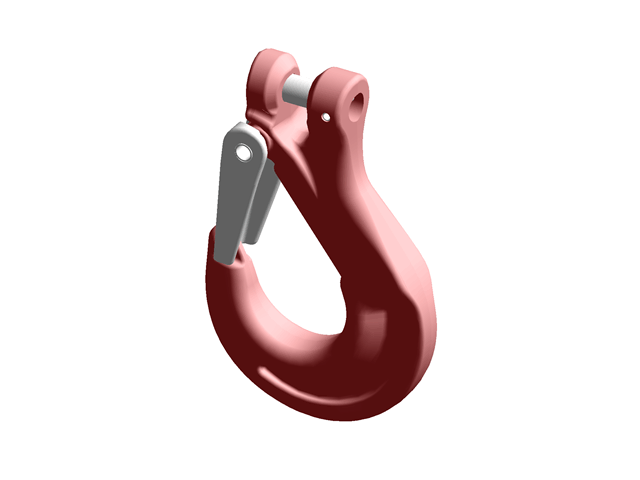

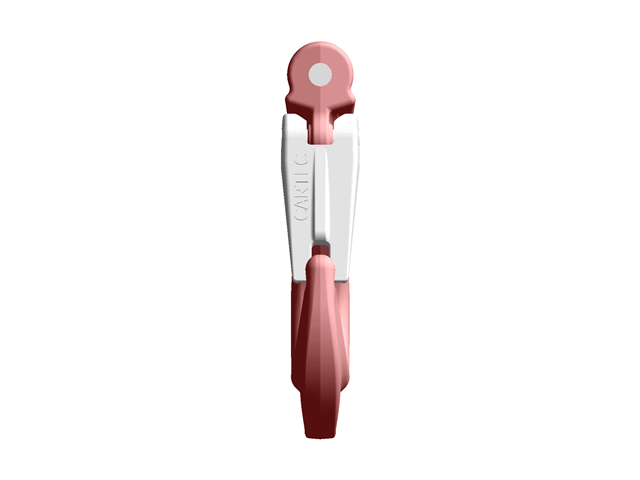

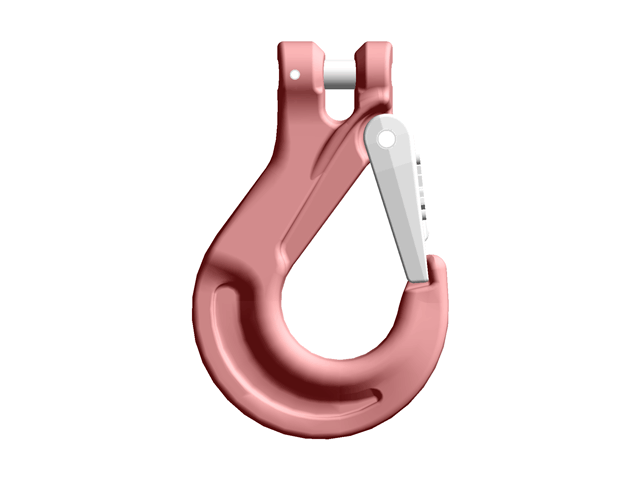

Back to Cartec G8 Clevis Sling Hook With Latch
Made in Italy

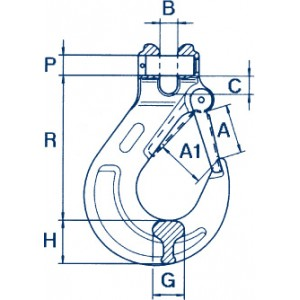

| Item Number | Chain | inch | A (mm) | B (mm) | C (mm) | G (mm) | H (mm) | R (mm) | Weight (Kg) | W.L.L. (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| CB 06 | 6 | 1/4 | 25 | 6,7 | 8,5 | 14,5 | 20 | 73 | 0,24 | 1120 |
| CB 08 | 7-8 | 9/32-5/16 | 29,5 | 8,7 | 9,8 | 19 | 27 | 86,3 | 0,53 | 2000 |
| CB 10 | 10 | 3/8 | 35,7 | 12,2 | 13,5 | 23,5 | 33 | 105 | 0,95 | 3150 |
| CB 13 | 13 | 1/2 | 43,5 | 15,3 | 17 | 28,5 | 40 | 128,5 | 1,67 | 5300 |
| CB 16 | 16 | 5/8 | 56 | 18 | 22 | 37 | 48 | 155 | 3 | 8000 |
| CB 20 | 20 | 3/4 | 61 | 23 | 26 | 51 | 52 | 183 | 5,7 | 12500 |
| CB 22 | 22 | 7/8 | 72 | 24,5 | 29 | 50 | 62 | 213 | 8,8 | 15000 |
| CB 26 | 26 | 1 | 77 | 30 | 34 | 60 | 75 | 230 | 13,5 | 21200 |
