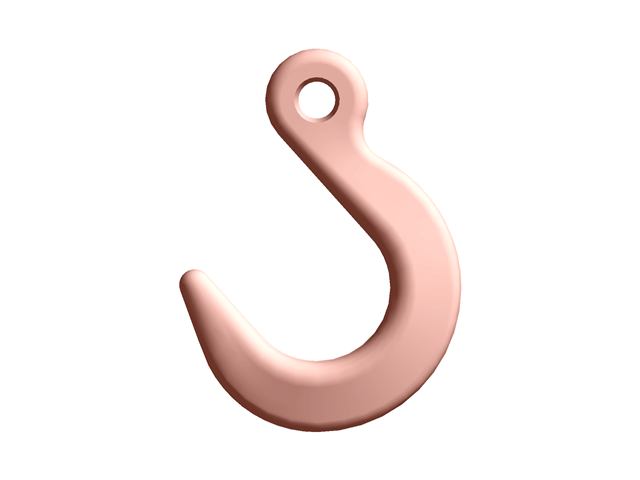

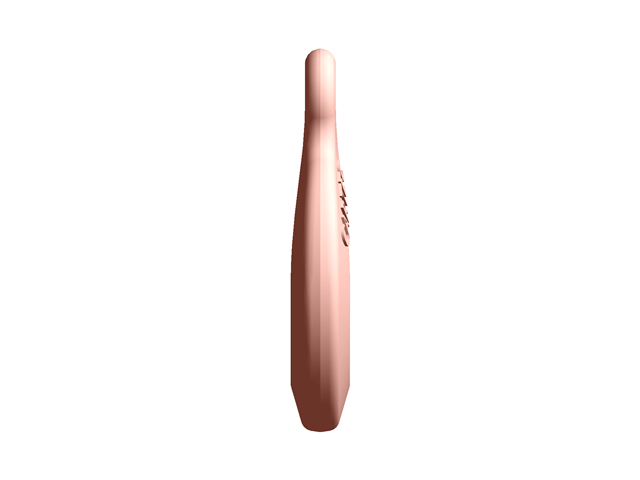

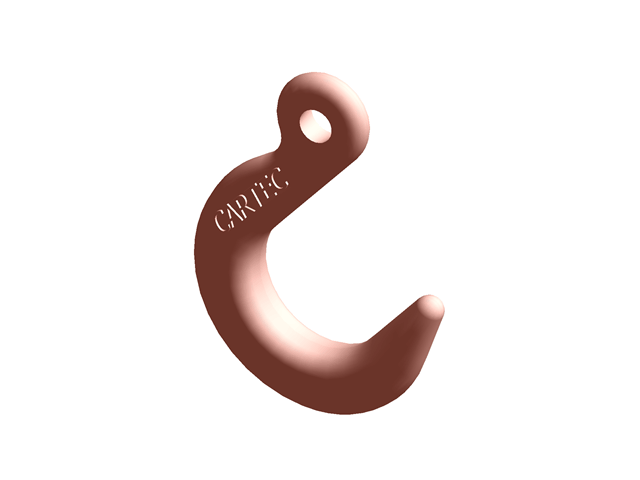

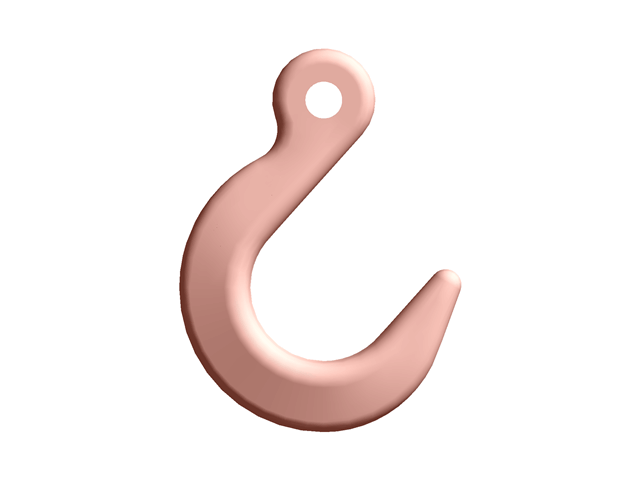

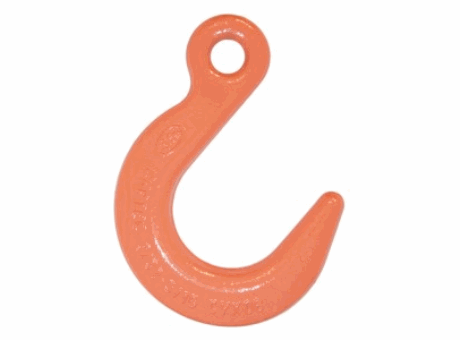

Back to Cartec G10 Foundry Hook
Made in Italy

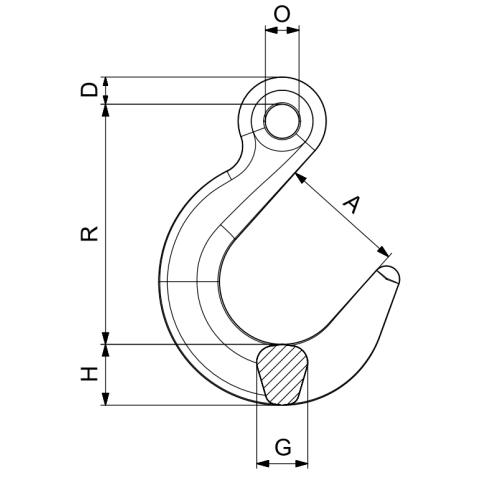

| Item Number | Chain | inch | A (mm) | D (mm) | G (mm) | H (mm | O (mm) | R (mm) | Weight (Kg) | W.L.L. (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| CYX 06 | 6 | 1/4 | 53,5 | 11,5 | 22 | 26 | 15 | 102,5 | 0,61 | 1400 |
| CYX 08 | 7-8 | 9/32-5/16 | 62 | 13,5 | 25 | 29 | 24 | 128 | 0,92 | 2500 |
| CYX 10 | 10 | 3/8 | 76 | 14 | 23 | 30 | 32 | 150 | 1,77 | 4000 |
| CYX 13 | 13 | 1/2 | 89 | 19 | 38 | 40 | 27 | 173 | 2,82 | 6700 |
| CYX 16 | 16 | 5/8 | 102 | 24 | 45 | 48 | 47 | 210 | 5,03 | 10000 |
| CYX 20 | 20 | 3/4 | 114 | 28 | 54 | 60 | 56 | 260 | 7,6 | 16000 |
| CYX 22 | 22 | 7/8 | 127 | 32 | 63 | 70 | 55 | 275 | 19000 | |
| CYX 26 | 26 | 1 | 136 | 35 | 72 | 80 | 62 | 305 | 26500 | |
| CYX 32 | 32 | 1,25 | 153 | 38 | 84 | 95 | 70 | 330 | 40000 |
