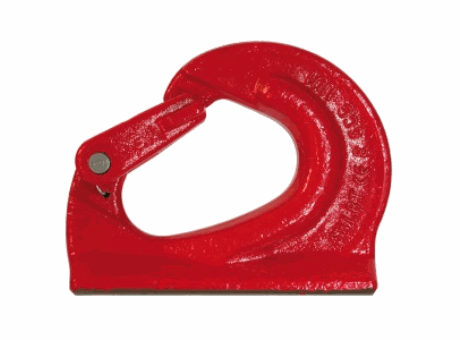

Back to Swivel/Rotating Eyebolts Hook Weld-on Type
Made in Italy

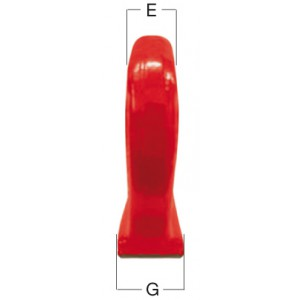

| Item Number | A (mm) | B (mm) | C (mm) | E (mm) | G (mm) | L (mm) | Weight (Kg) | W.L.L. (t) |
|---|---|---|---|---|---|---|---|---|
| C80510 | 51 | 171,5 | 134,5 | 39 | 53 | 223 | 5,2 | 10 |
| C805112 | 25 | 78 | 59,5 | 20 | 25 | 101 | 0,48 | 1,12 |
| C8052 | 26,5 | 92 | 65 | 22 | 34 | 114 | 0,85 | 2 |
| C8053 | 29 | 106 | 75 | 24 | 36 | 129 | 1,12 | 3 |
| C8055 | 34,5 | 130 | 92 | 30 | 45 | 171 | 2,5 | 5 |
| C8058 | 34,5 | 135 | 98 | 39 | 51 | 177 | 3,2 | 8 |
