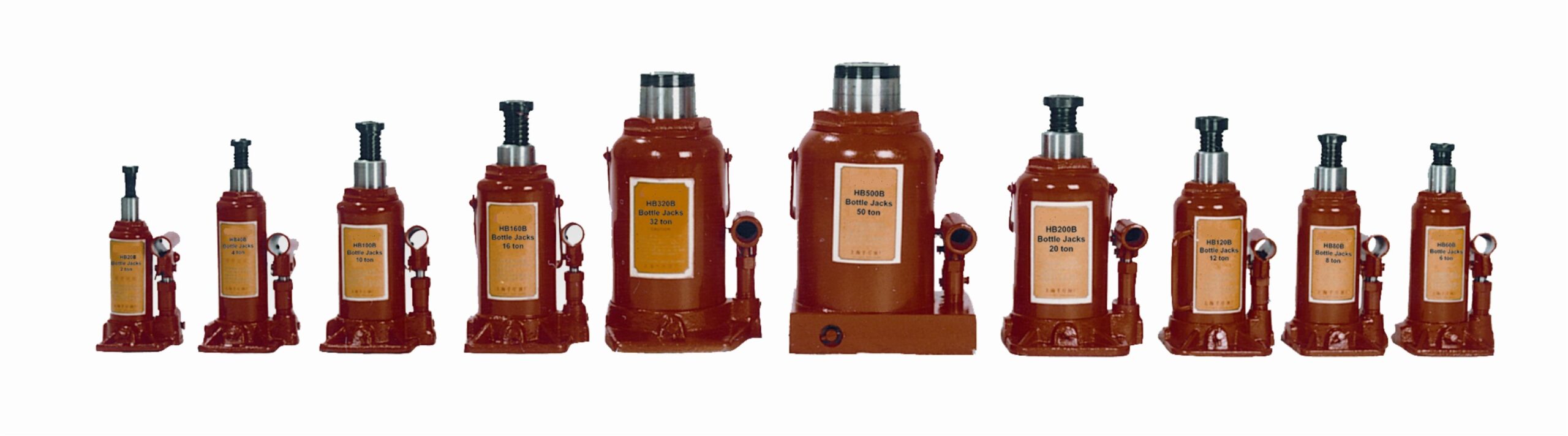

Hydraulic Bottle Jack HV Series

Versatile jacks can be used vertically (not upside down) or at any angle to not more than 5 degrees from vertical position.
Can NOT be used horizontally.
Machined and positioned cylinder walls ensure straight lifts, preventing uneven wear.
Heat treated adjustable extension screw with cleaned lift saddle prevents slippage.
Bottle jacks with lifting capacity of 12 tons and over have carrying handle for convenient moving or positioning.
Patented bypass mechanism products hydraulic cylinder from over pumped.

Product Specification

Model	Rated Capacity (kg)	Minimum Height (mm)<=	Lifting Height (mm)<=	Adjust Height (mm)<=	Operating Force of Handle (N)<=	Net Weight (kg)
HB16C	1600	158	90	60	400	2.5
HB32C	3200	185	125	60	400	3.7
HB50C	5000	197	125	80	400	5.0
HB80C	8000	200	125	70	400	6.5
HB100C	10000	217	125	70	400	7.5
HB125C	12500	227	135	80	400	9.5
HB160C	16000	242	145	70	400	11.5
HB200C	20000	245	145	70	400	12.5
HB300	30000	285	180	-	400	23.0
HB500C	50000	300	180	-	400	34.0
