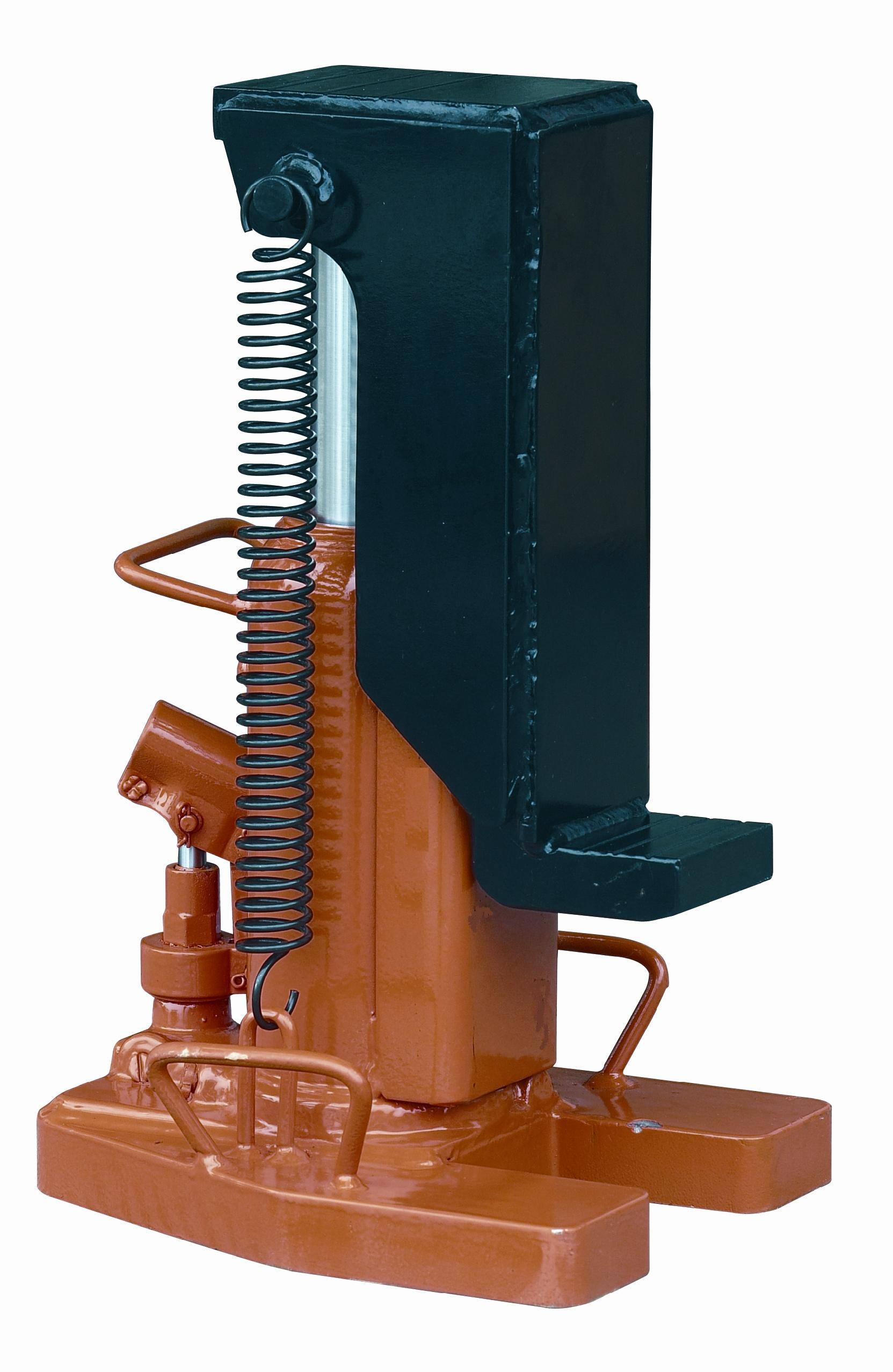

INDUSTRIAL TOE JACK TL SERIES

Heavy-duty, industrial quality, dual purpose jack.
Designed for lifting loads with very low minimum clearances (foot) or high clearances (head).
Ideal for house moving, machinery installation and application at shipyard, bridge building or plant construction sites.
Great companion tool for machinery type rollers.
Easy operation in any direction on 5 and 10ton models.
Safety valve for overload protection.
Features spring assisted return and over-travel protection on 5 or 10 ton models.
Ram is made of heat treated special steel to resist rust and assure strength.
Electrically welded base and cylinders to assure strength.
Not affected by temperature extremes.

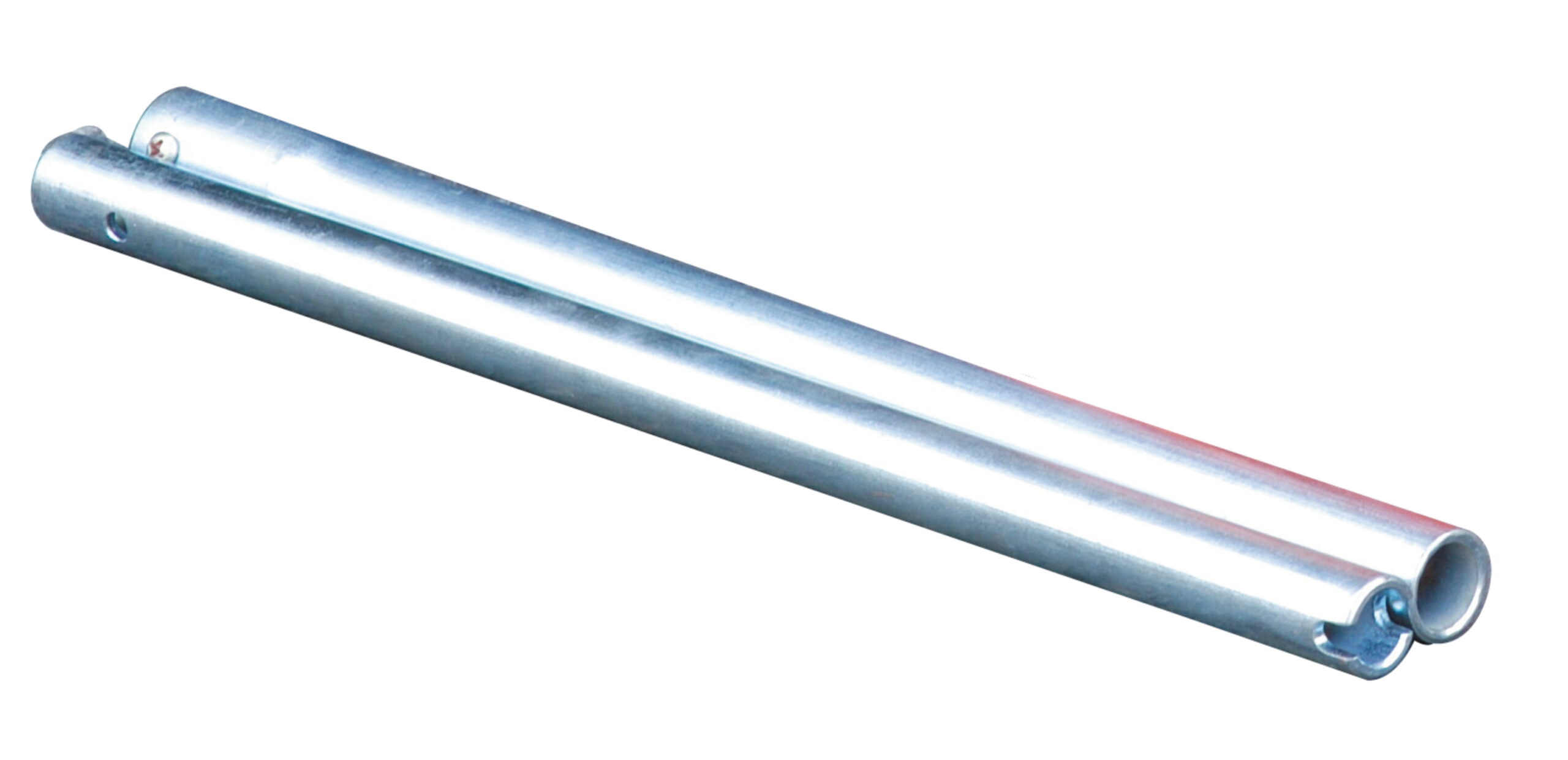

Pump handle included.
Complies with ANSI/ASME B30.1 stamdards and CE safety standard.

Product Specification

Model	Toe Capacity (tons)	Head Capacity	Toe Height Min. (In.)	Top Lift	Top Height Max. (In.)	Head Height Min.(In.)	Head Height Max.(In.)	Toe Size	Base Size	Net Weight (Ibs.)
TL-7102	2	3	5/8	4-7/16	5-1/16	9-3/8	13-3/4	2×2	5×7	18
TL-7105	5	6	7/8	4-3/4	5-9/16	11-3/4	16-1/8	2-1/4×3	10-5/8×7-1/4	53
TL-7110	10	14	1-1/8	5-3/4	6-13/18	13-1/8	18-1/8	2-3/8×4	11-1/4×9-1/2	84
