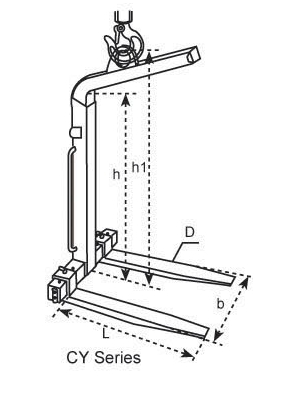

Back to Self-Balance Crane forks CY Series
BS ISO 2328
BS ISO 2328| Model | Work Load Limit WLL (tonne) | Adjustable Fork Width b (mm) | Hook Height h (mm) | Effective Height h (mm) | Fork Length L (mm) | Fork Cross D (mm) | Overall Size LxWxH (mm) | Net Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| CK10 | 1 | 350-900 | 1390-1890 | 1100-1600 | 1000 | 100x30 | 1120x920x1390 | 130 |
| CK20 | 2 | 400-900 | 1640-2340 | 1300-2000 | 1000 | 120x40 | 1140x920x1640 | 200 |
| CK30 | 3 | 450-900 | 1670-2370 | 1300-2000 | 1000 | 120x50 | 1140x920x1670 | 250 |
| CK50 | 5 | 530-1000 | 1700-2400 | 1300-2000 | 1000 | 150x60 | 1160x1020x1700 | 370 |
| CY10 | 1 | 350-900 | 1420-1920 | 1100-1600 | 1000 | 100x30 | 1120x920x1530 | 140 |
| CY20 | 2 | 400-900 | 1655-2355 | 1300-2000 | 1000 | 120x40 | 1140x920x1775 | 220 |
| CY30 | 3 | 450-900 | 1720-2420 | 1300-2000 | 1000 | 120x50 | 1140x920x1850 | 280 |
| CY50 | 5 | 530-1000 | 1710-2410 | 1300-2000 | 1000 | 150x60 | 1160x1020x1850 | 380 |
