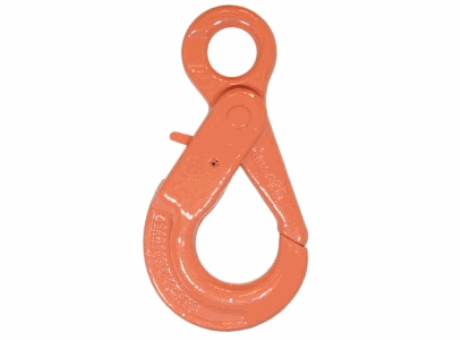

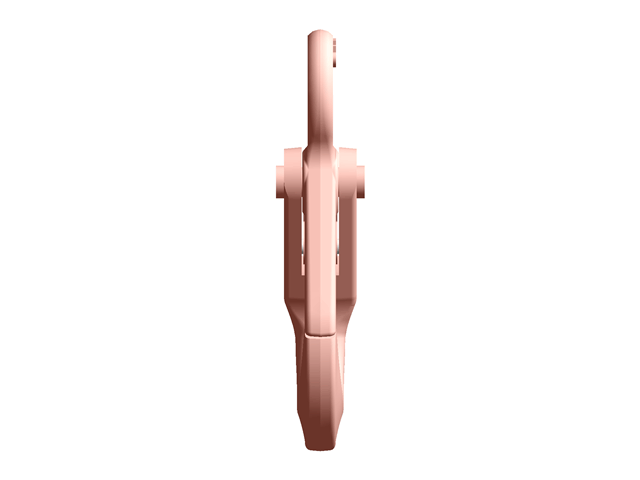

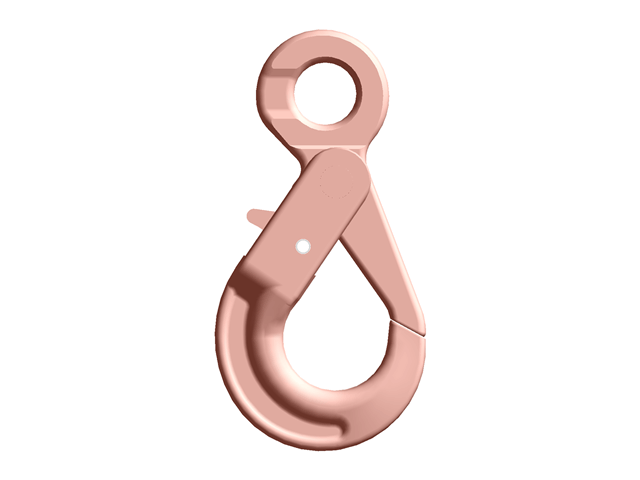

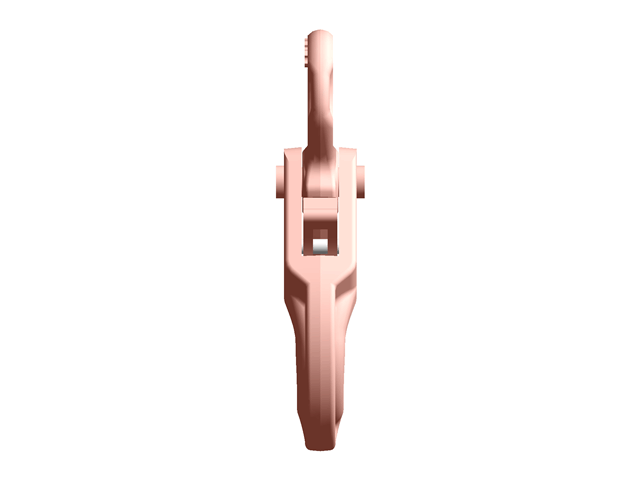

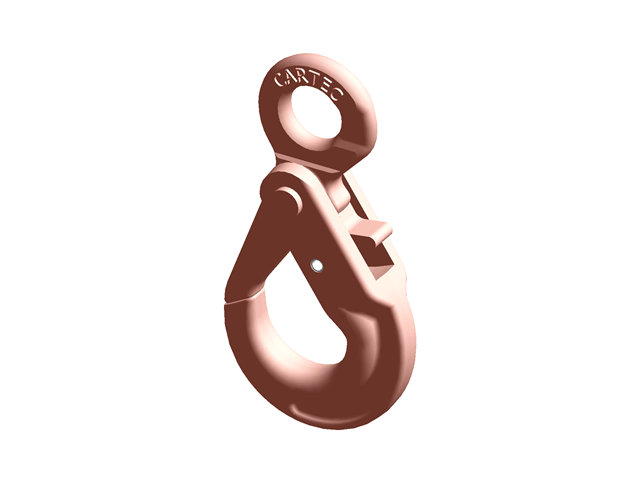

Back to Cartec G10 Self Locking Eye Hook
Made in Italy

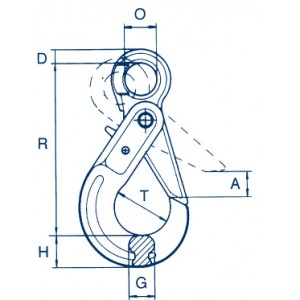

| Item Number | Chain | inch | A (mm) | D (mm) | G (mm) | H (mm) | O (mm) | R (mm) | Weight (Kg) | W.L.L. (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| CROX 06 | 5-6 | 7/32-1/4 | 28 | 11 | 16 | 21 | 21 | 109 | 0,5 | 1400 |
| CROX 08 | 7-8 | 9/32-5/16 | 34 | 12 | 20 | 26 | 25 | 135 | 0,96 | 2500 |
| CROX 10 | 10 | 3/8 | 45 | 16 | 25 | 30 | 33 | 168 | 1,65 | 4000 |
| CROX 13 | 13 | 1/2 | 51 | 20 | 35 | 40 | 40 | 205 | 3,25 | 6700 |
| CROX 16 | 16 | 5/8 | 60 | 27 | 36 | 50 | 50 | 251 | 6,1 | 10000 |
| CROX 20 | 20 | 3/4 | 70 | 30 | 60 | 67 | 60 | 290 | 9,8 | 16000 |
| CROX 22 | 22 | 7/8 | 80 | 32 | 62 | 70 | 70 | 322 | 14,4 | 19000 |
