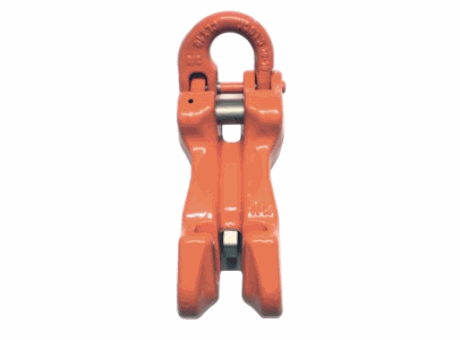

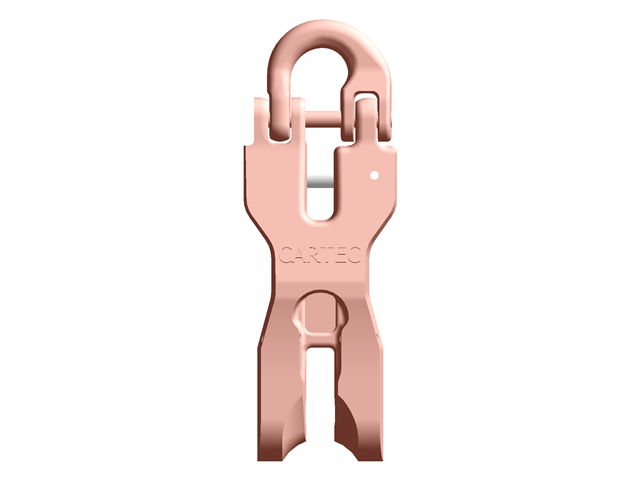

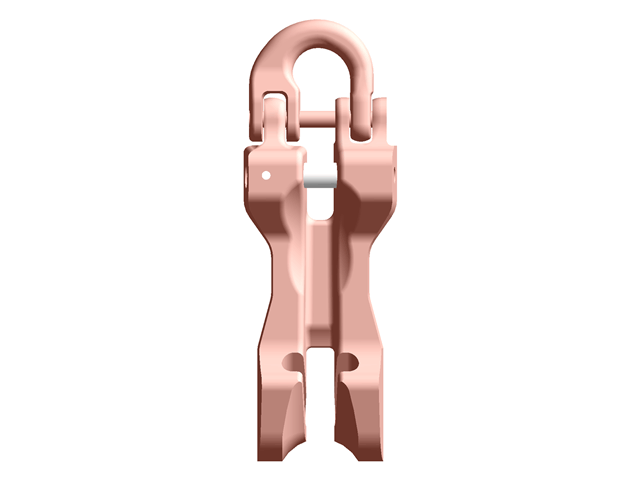

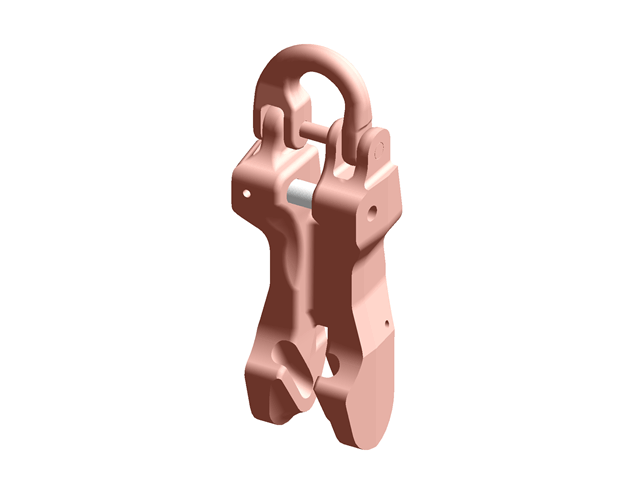

Back to Cartec G10 Short Clutch With Semi Connecting Link
Made in Italy

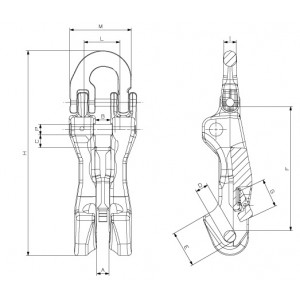

| Item Number | Chain | inch | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | Weight (Kg) | W.L.L. (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CXXL 07S | 7 | 9/32 | 9,5 | 9,5 | 10 | 9,5 | 23,5 | 56 | 29 | 158 | 8,5 | 0,82 | 10000 |
| CXXL 08S | 8 | 5/16 | 9,5 | 9,5 | 10 | 9,5 | 23,5 | 56 | 29 | 164 | 10 | 0,85 | 1900 |
| CXXL 10S | 10 | 3/8 | 12 | 12 | 14,5 | 12 | 32,5 | 78 | 36 | 193 | 12,5 | 1,61 | 4000 |
| CXXL 13S | 13 | 1/2 | 15,5 | 15,5 | 18 | 15,5 | 44 | 90 | 35 | 249,5 | 16 | 3,27 | 6700 |
| CXXL 16S | 16 | 5/8 | 19 | 21 | 21 | 19 | 50 | 106 | 38 | 303 | 20 | 5,75 | 10000 |
