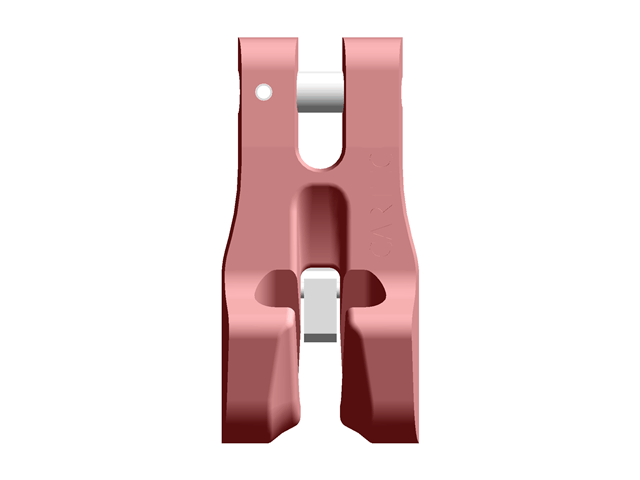

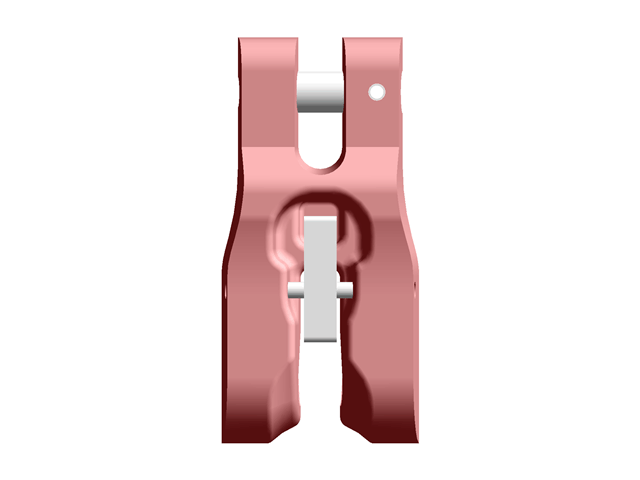

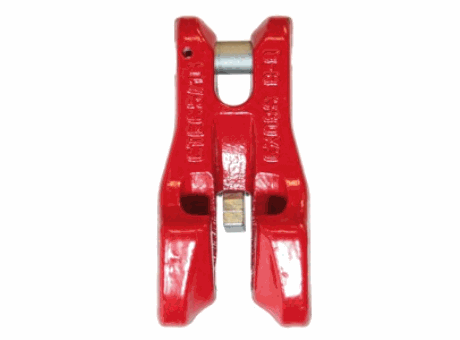

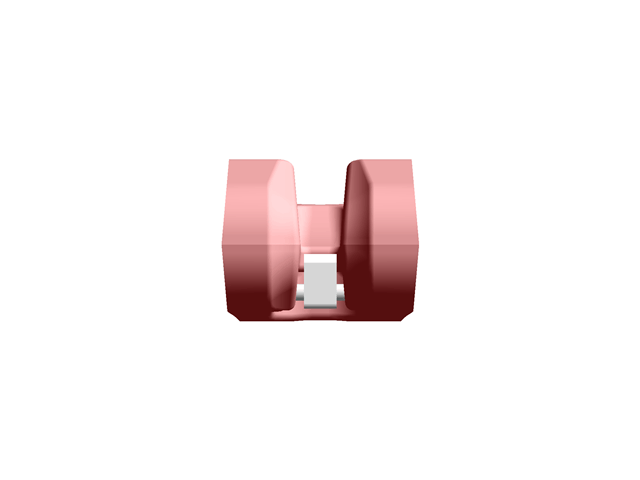

Back to Cartec G8 Shortening Clutch With Safety
Made in Italy

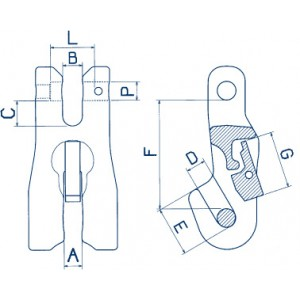

| Item Number | Chain | inch | A (mm) | B (mm | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Weight (Kg) | W.L.L. (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CX 06S | 6 | 1/4 | 8 | 8 | 10 | 8 | 19 | 45 | 23 | 0,21 | 1120 |
| CX 07S | 7 | 9/32 | 9,5 | 9,5 | 10 | 9,5 | 23,5 | 56 | 29 | 0,48 | 1500 |
| CX 08S | 8 | 5/16 | 9,5 | 9,5 | 10 | 9,5 | 23,5 | 56 | 29 | 0,48 | 2000 |
| CX 10S | 10 | 3/8 | 12 | 12 | 14,5 | 12 | 32,5 | 78 | 36 | 1,12 | 3150 |
| CX 13S | 13 | 1/2 | 15,5 | 15,5 | 18 | 15,5 | 44 | 90 | 35 | 1,83 | 5300 |
| CX 16S | 16 | 5/8 | 19 | 21 | 21 | 19 | 50 | 106 | 38 | 2,83 | 8000 |
